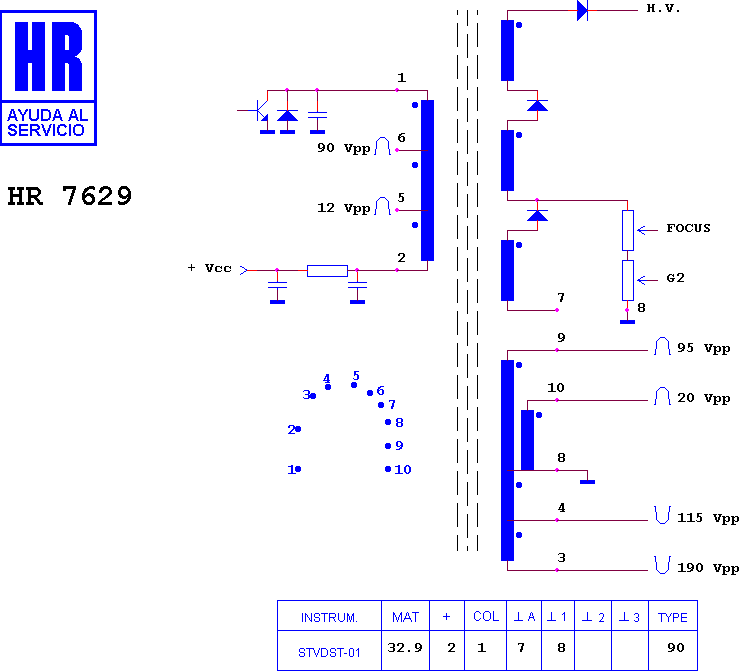

HR 7629

type ST · family 1YP · 32.9 kV maximum anode voltage · 90° deflection · 3 windings · 374 g

Manufacturer equivalents (2)

043219004M · 3219004

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7983 · HR 7648 · HR 7723 · HR 8607 · HR 8088 · HR 8820 · HR 7830 · HR 7457 · HR 8922 · HR 7439 · HR 8096 · HR 7726

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
