HR 7830

type ST · family 1XP1 · 21.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

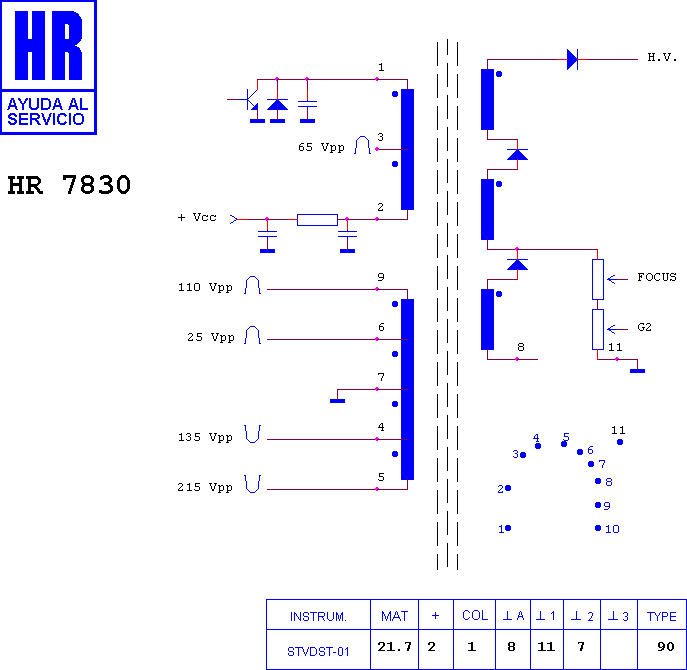

Schematic diagram for HR 7830
schematic

Manufacturer equivalents (2)

FCM 20 B 025 · RO 237

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7711 · HR 8087 · HR 8922 · HR 7657 · HR 7983 · HR 8820 · HR 7648 · HR 8263 · HR 7660 · HR 8607 · HR 8088 · HR 7659

Fitted to (2)

CROWN CTV H 5180 · HCM ROYAL TV 5115 A
