HR 8140

type ST · family 1YP · 27 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

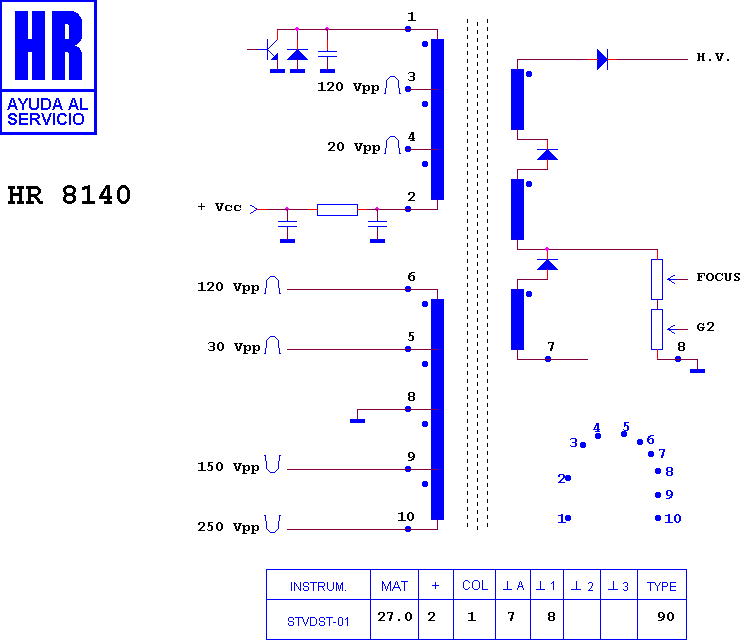

Schematic diagram for HR 8140
schematic

Manufacturer equivalents (6)

03214021 Q · 043214021 Q · 0432140210 · 3214021 · 3214021 Q · FAT30616

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8915 · HR 8547 · HR 7711 · HR 7769 · HR 7983 · HR 8194 · HR 8807 · HR 8607 · HR 7723 · HR 7822 · HR 8820 · HR 7830

Fitted to (12)

ALBA CTV 843 · BUSH-MURPHY-RANK 3114 A · BUSH-MURPHY-RANK 3114 AT · BUSH-MURPHY-RANK 3314 S · HINARI HIT 140 RC · MATSUI 1466 · ORION 14 J · ORION 14 LED · ORION 14 LR · ORION 14 LRX 50 · ORION 14 LT · ORION W 1493
