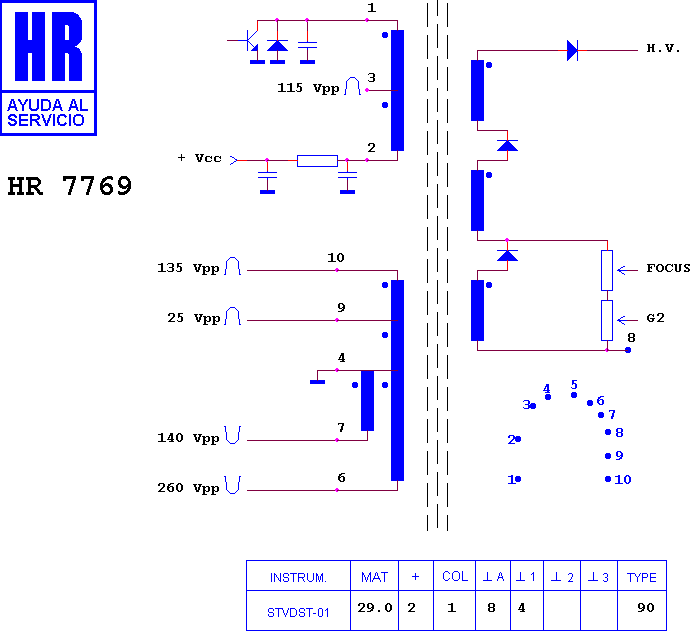

HR 7769

type ST · family 1YP · 29 kV maximum anode voltage · 90° deflection · 4 windings · 380 g

Manufacturer equivalents (1)

TFB 4071 AD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8547 · HR 8194 · HR 7983 · HR 8915 · HR 8140 · HR 7669 · HR 7488 · HR 7816 · HR 8607 · HR 7723 · HR 7822 · HR 7772

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
