HR 8928

27.3 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

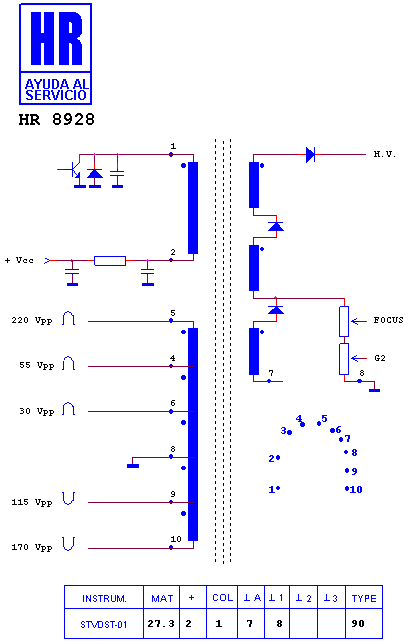

Schematic diagram for HR 8928
schematic (archived)

Manufacturer equivalents (2)

BW02154 · JBW02154

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7970 · HR 8573 · HR 7868 · HR 7809 · HR 7657 · HR 7881 · HR 8747 · HR 7461 · HR 7830 · HR 8087 · HR 7645 · HR 7656

Fitted to (10)

HITACHI CL 21 F 45 AN · HITACHI CL 21 F 45 AN 300 · HITACHI CL 2145 AN · PHILIPS 14 PV 330 · PHILIPS 14 PV 330/39 · PHILIPS 14 PV 330/39 · PHILIPS COMBI TV/VCR · PHILIPS COMBI TV/VCR · PHILIPS DELTA 2000 · SONY KV M 1420 B
