HR 7809

type ST · family 1YP · 21.1 kV maximum anode voltage · 90° deflection · 3 windings · 370 g

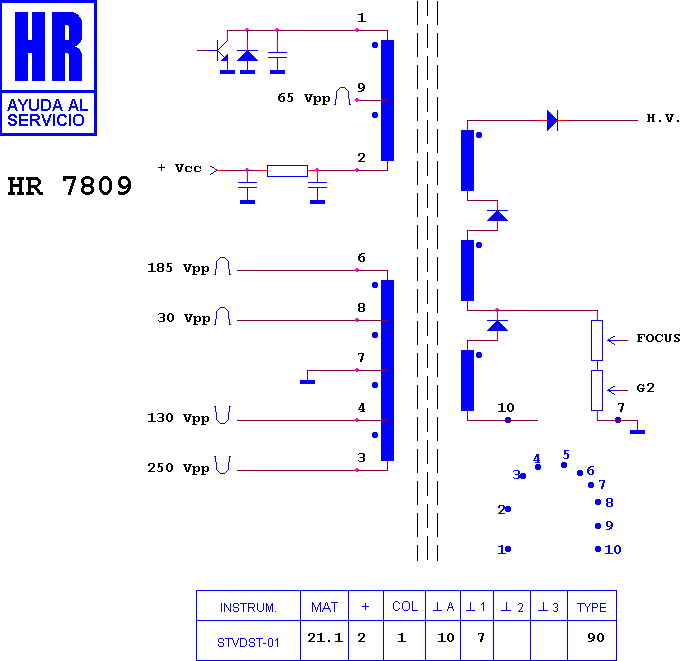

Schematic diagram for HR 7809
schematic

Manufacturer equivalents (6)

BSC24-1040 · F 0063 CE · F 0063 PE · F 0063 PE-M · RTRNF0063CEZZ · RTRNF0063PEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8928 · HR 7657 · HR 8573 · HR 7830 · HR 8087 · HR 7839 · HR 8263 · HR 7854 · HR 8922 · HR 7970 · HR 7817 · HR 7811

Fitted to (11)

SHARP 14 DN 1 · SHARP 20 B · SHARP 34 A 1 · SHARP C 2093 Y · SHARP CHASIS 14 B · SHARP CV 3706 H · SHARP CV 3730 · SHARP CV 3730 H · SHARP CV 3730 S · SHARP CV 3745 H · SHARP CX 34 A 1
