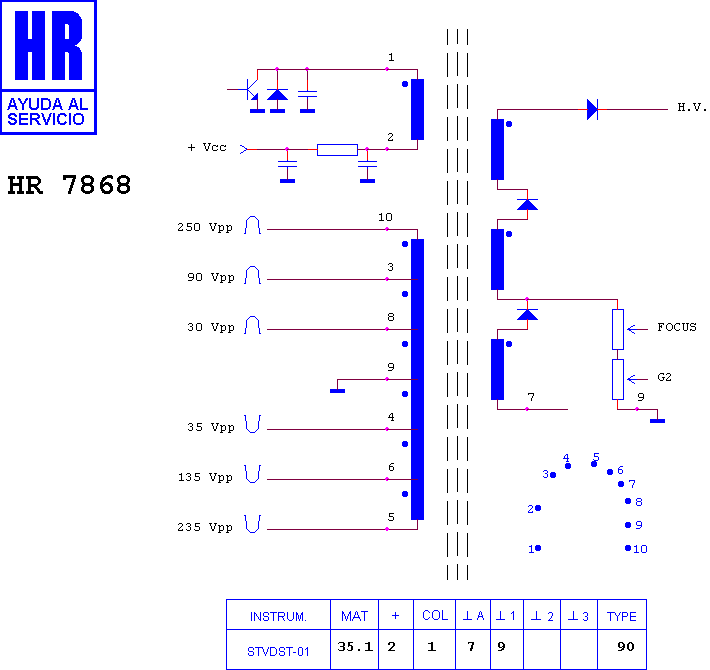

HR 7868

type ST · family 1YP · 35.1 kV maximum anode voltage · 90° deflection · 3 windings · 402 g

Manufacturer equivalents (7)

2435032 · 2435032A · 2435035 · 2435035H · 2435036 · 2435036 A · 2435036H

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7832 · HR 7881 · HR 7960 · HR 7488 · HR 8928 · HR 7829 · HR 8755 · HR 8092 · HR 7456 · HR 7482 · HR 6211 · HR 80076

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

HITACHI CMT 2700
