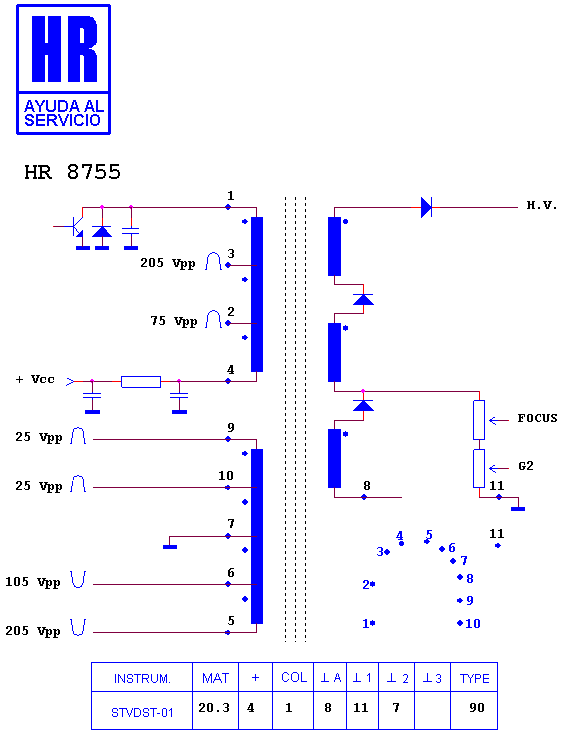

HR 8755

type ST · family 1XP1 · 20.3 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

154 106 D

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7797 · HR 7456 · HR 7482 · HR 7868 · HR 7832 · HR 8092 · HR 7264 · HR 7458 · HR 80076 · HR 7843 · HR 8207 · HR 6479

Fitted to (1)

LG - GOLDSTAR GCT 2556 S
