HR 6479

type ST · family 1BP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 412 g

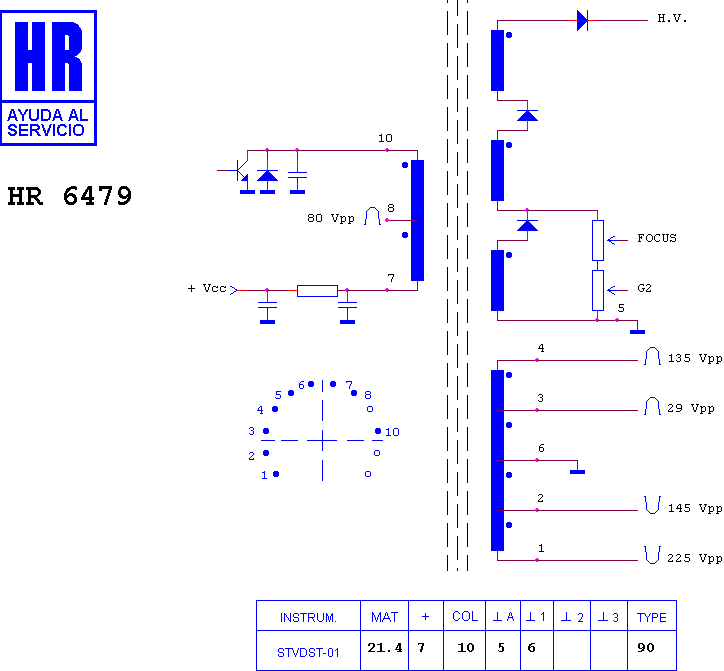

Schematic diagram for HR 6479
schematic

Manufacturer equivalents (2)

473266.00 · 473266.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8607 · HR 6009 · HR 7983 · HR 6022 · HR 7978 · HR 7726 · HR 8088 · HR 7444 · HR 8605 · HR 7829 · HR 7854 · HR 7648

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

TOSHIBA 215 R 8 N · TOSHIBA 215 R 8 W · TOSHIBA 215 T 8 W · TOSHIBA 215 TT 8 W · TOSHIBA NR 215 R 8 W
