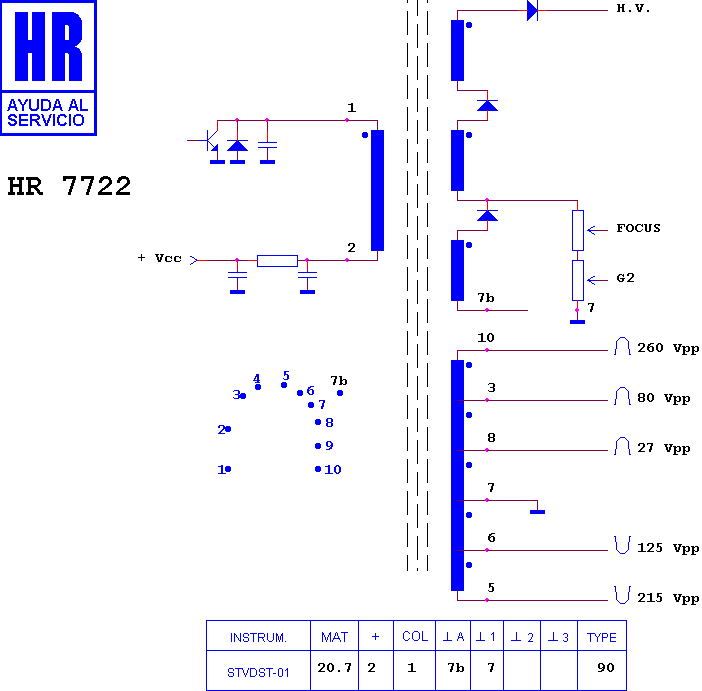

HR 7722

type ST · family 1VP · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 413 g

Manufacturer equivalents (3)

2434641 · 2434641 H · 434641

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7839 · HR 7816 · HR 7772 · HR 7711 · HR 7488 · HR 6223 · HR 8573 · HR 7817 · HR 7830 · HR 8922 · HR 7822 · HR 7809

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
