HR 8782

26.9 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

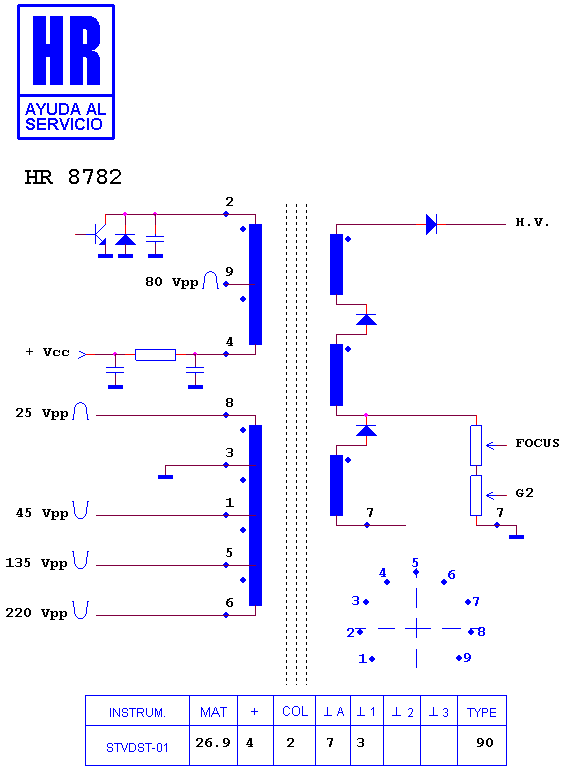

Schematic diagram for HR 8782
schematic (archived)

Manufacturer equivalents (1)

TLF14690B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7801 · HR 7789 · HR 8268 · HR 8263 · HR 7858 · HR 7856 · HR 7820 · HR 7660 · HR 5720 · HR 7511 · HR 8752 · HR 6283

Fitted to (4)

NATIONAL 515 · NATIONAL CN 515 · PANASONIC - MATSUSHITA CN 515 · PANASONIC - MATSUSHITA TC 1962 MR
