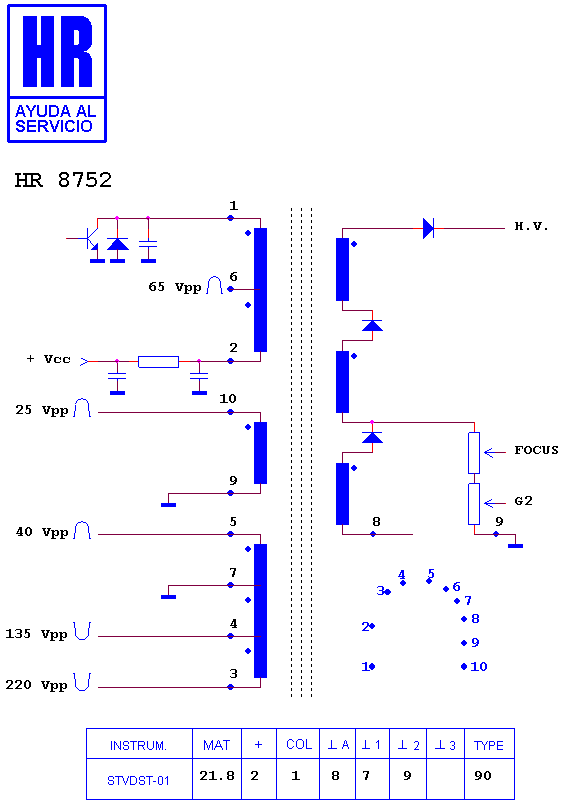

HR 8752

type ST · family 1YP · 21.8 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

Manufacturer equivalents (5)

334 B 08003 · 334 B 080030 · 334 P 16401 · 334 P 164010 · FAT 30351

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7328 · HR 7789 · HR 8782 · HR 7245 · HR 8127 · HR 6219 · HR 6283 · HR 7592 · HR 7908 · HR 8074 · HR 6116 · HR 7243

Notes

COD-043 FOR 334 B 080030 CHANGE R660 2;7 TO 3;3(2W) R229 820TO 2K C569 AND C570 FROM 1800pf TO 2000pf (see instructions)

Fitted to (6)

MITSUBISHI CT 1515 EM · MITSUBISHI CT 1515 FM · MITSUBISHI CT 1525 EM · MITSUBISHI CT 1525 FM · MITSUBISHI CT 1525 LM · MITSUBISHI CT 1525 TX

Search this part in the full database
