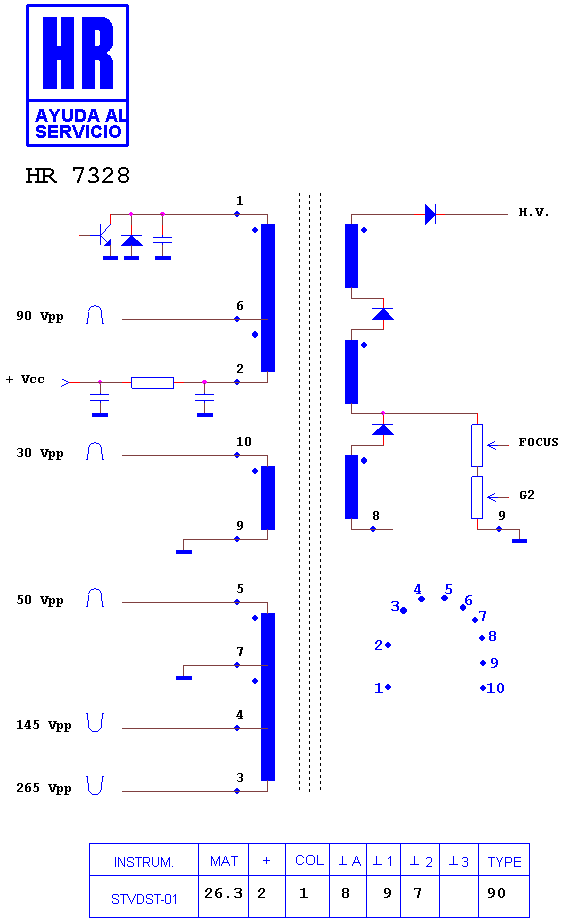

HR 7328

26.3 kV maximum anode voltage · 90° deflection · 4 windings · 380 g

Manufacturer equivalents (2)

334 P 18002 · 334 P 180020

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8752 · HR 7824 · HR 7341 · HR 8284 · HR 6398 · HR 7030

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

BREND STAR CB 338 HS · MITSUBISHI CHASIS EURO 3 M · MITSUBISHI CT 14 M 1 · MITSUBISHI CT 14 M 1 BM · MITSUBISHI CT 14 M 1 EM · MITSUBISHI CT 14 M 1 EM (Y) · MITSUBISHI CT 14 M 1 EP · MITSUBISHI CT 14 M 1 EPM · MITSUBISHI CT 14 MM 1 EPM · MITSUBISHI CT 141 EPM
