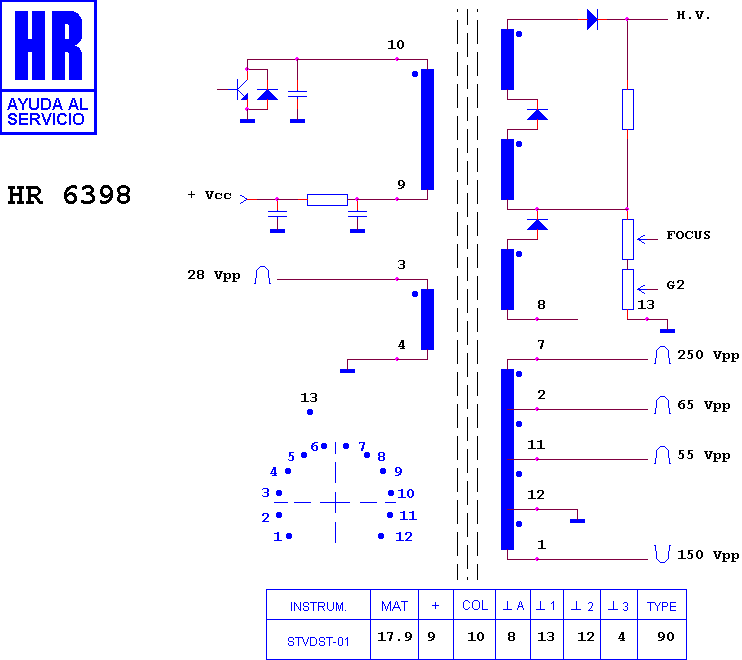

HR 6398

type ST · family 1BP1 · 17.9 kV maximum anode voltage · 90° deflection · 4 windings · 395 g

Manufacturer equivalents (1)

HR 6398

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6308 · HR 7341 · HR 8386 · HR 6318 · HR 7109 · HR 80293 · HR 7175 · HR 6219 · HR 7883 · HR 7592 · HR 7789 · HR 7207
