HR 6308

type ST · family 1QS · 22.1 kV maximum anode voltage · 90° deflection · 5 windings · 334 g

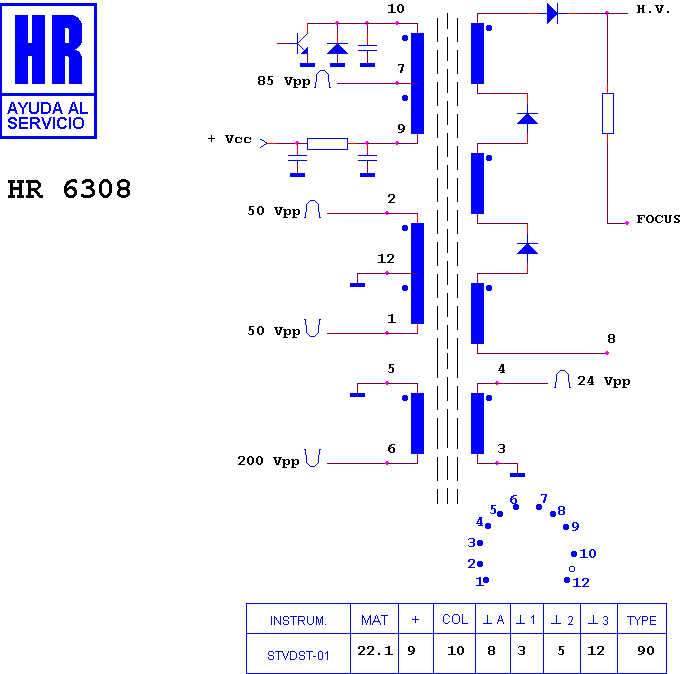

Schematic diagram for HR 6308
schematic

Manufacturer equivalents (9)

003220103 · 75 3543 · 8 667 210 523 · FAT3798 · KN3798 · ME/6092-00 · RO201 · TR 056 · TR228

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6398 · HR 8266 · HR 7883 · HR 7789 · HR 7291 · HR 8386 · HR 7877 · HR 7293 · HR 7592 · HR 7341 · HR 8710 · HR 8186

Fitted to (15)

BLAUPUNKT 7 665 220 · BLAUPUNKT 7 665 260 · BLAUPUNKT 7 665 280 · BLAUPUNKT 7 666 260 · BLAUPUNKT CHASIS FM 130 · BLAUPUNKT MARBELLA MP 45 · BLAUPUNKT MONZA SQ 25 · BLAUPUNKT MONZA SQ 25 BTX · BLAUPUNKT MS 55-76 · SIEMENS FC 123 · SIEMENS FC 912 · SIEMENS FC 9124 · SIEMENS FC 9127 · SIEMENS FS 917 · SIEMENS FS 9177
