HR 7592

type ST · family 1NP1 · 21.8 kV maximum anode voltage · 90° deflection · 4 windings · 250 g

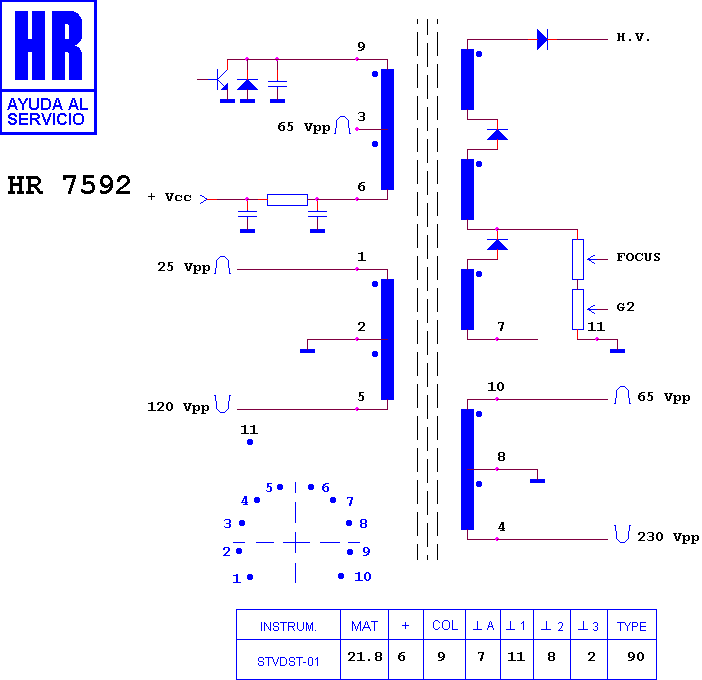

Schematic diagram for HR 7592
schematic

Manufacturer equivalents (29)

1042.0002 · 1142.0815 · 1142.0815 A · 1142.0815 C · 140 10397 · 2419 531 98000 · 2419 531 98001 · 2419 531 98002 · 2419 531 98003 · 2419 531 98004 · 2419 531 98005 · 2419 531 98006 · 4822 140 10397 · 4822 140 81397 · 4822 148 81397 · 4835 140 67116 · 531 98001 · 531 98002 · 531 98003 · 531 98004 · 531 98005 · 531 98006 · 75.9880-1730 · 75988.017.3000 · 8 619 139 229 · FAT 30354 · HR 7592 · TR 7535 · TRR 397

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7563 · HR 7585 · HR 8047 · HR 7567 · HR 7588 · HR 7997 · HR 7908 · HR 7910 · HR 7883 · HR 8127 · HR 8266 · HR 8143

Fitted to (25)

BAUER 14 TVCR 240 · BAUER 831.188 · BLAUPUNKT 7 618 370 · BLAUPUNKT 7 618 380 · BLAUPUNKT TELEVIDEO 375 · GRUNDIG 14 · GRUNDIG 3700 · GRUNDIG 3720 · GRUNDIG COMBI · GRUNDIG TVR · GRUNDIG TVR 3700 · GRUNDIG TVR 3720 · PHILIPS 14 · PHILIPS 14 TVCR 1420/07 · PHILIPS 14 TVCR 240 · PHILIPS 14 TVCR 240/01 · PHILIPS 14 TVCR 240/02 · PHILIPS 14 TVCR 240/05 · PHILIPS 14 TVCR 240/07 · PHILIPS 14 TVCR 240/08 · PHILIPS 14 TVCR 240/13 · PHILIPS 14 TVCR 240/39 · PHILIPS 14 TVCR 240/59 · PHILIPS CHASIS TV/VCR ECO · PHILIPS COMBI TV/VCR
