HR 7908

type ST · family 1YP · 23.9 kV maximum anode voltage · 90° deflection · 4 windings · 400 g

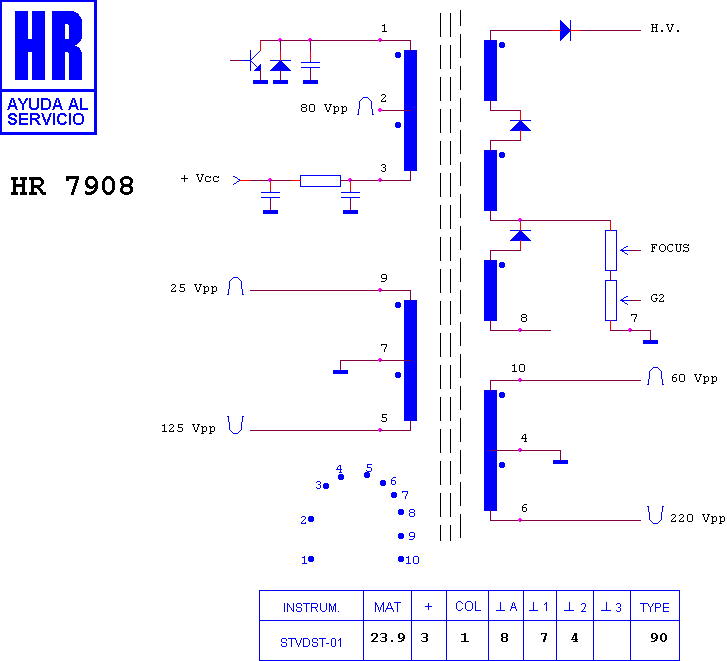

Schematic diagram for HR 7908
schematic

Manufacturer equivalents (4)

154 168 G · 154 207 E · 154 207 F · 154207V

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8143 · HR 7910 · HR 7997 · HR 8135 · HR 8455 · HR 7921 · HR 7808 · HR 7721 · HR 7856 · HR 8263 · HR 7660 · HR 7659

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

AKAI CTK 2175 · GOLDSTAR - LG CHASIS PC 12 B · GOLDSTAR - LG CIT 2170 F · GOLDSTAR - LG CIT 2171 F
