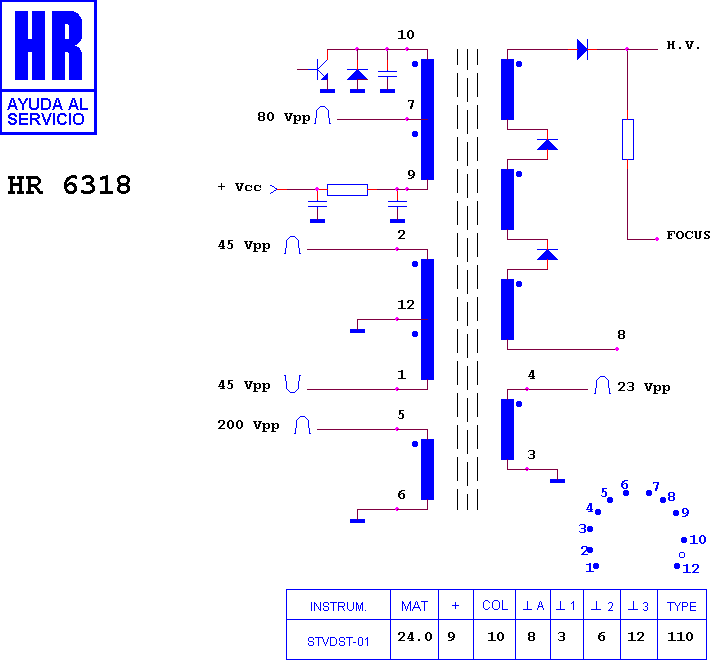

HR 6318

5 windings

Manufacturer equivalents (2)

1182.0437 · 8 667 210 808

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6347 · HR 8883 · HR 6398 · HR 7341 · HR 8031 · HR 6365 · HR 7394 · HR 6308 · HR 6333 · HR 8292 · HR 6306 · HR 6341

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
