HR 6341

type ST · family 1QP · 22.5 kV maximum anode voltage · 110° deflection · 3 windings · 365 g

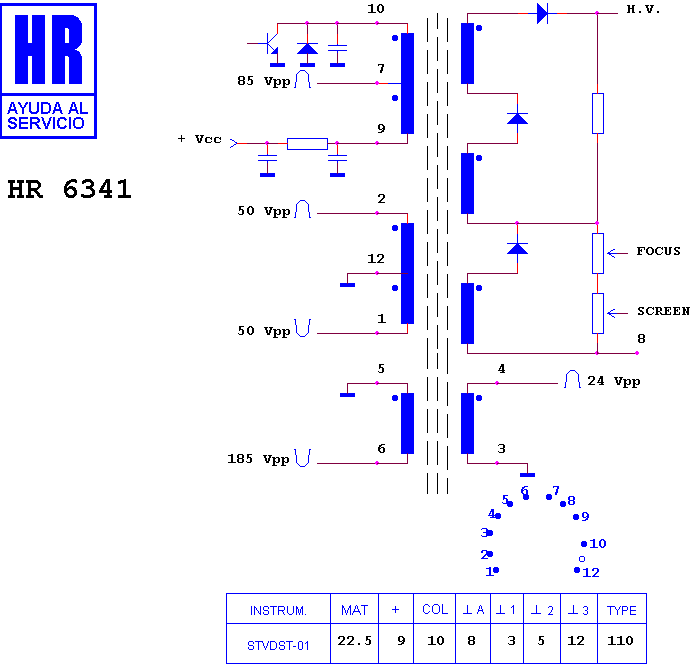

Schematic diagram for HR 6341
schematic

Manufacturer equivalents (1)

8 667 210 806 P 002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6306 · HR 6305 · HR 6330 · HR 6340 · HR 6307 · HR 6332 · HR 6342 · HR 6333 · HR 6318 · HR 6347 · HR 6331 · HR 6325

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
