HR 6347

type ST · family 1QP · 22.8 kV maximum anode voltage · 110° deflection · 5 windings · 359 g

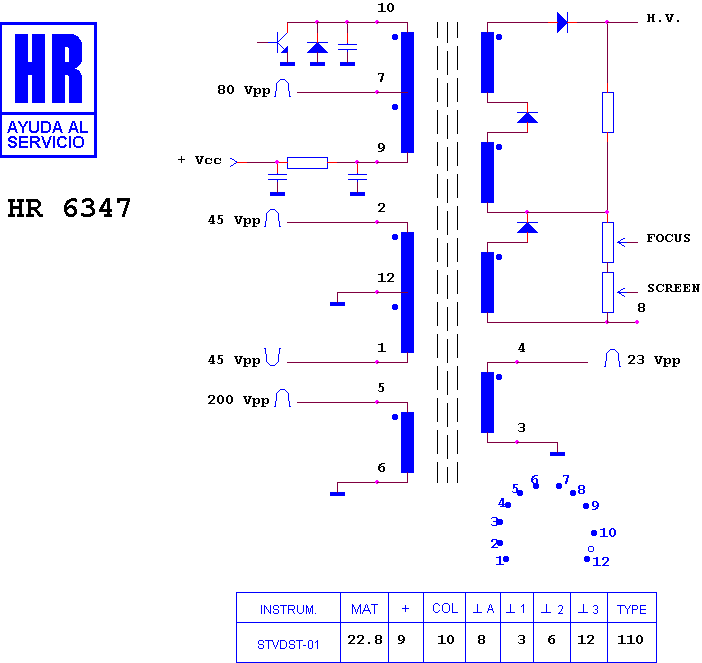

Schematic diagram for HR 6347
schematic

Manufacturer equivalents (1)

8 667 210 808 P 002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6318 · HR 6333 · HR 6306 · HR 6341 · HR 6331 · HR 7860 · HR 8883 · HR 8031 · HR 6365 · HR 8204 · HR 8576 · HR 80052

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
