HR 8883

35.7 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

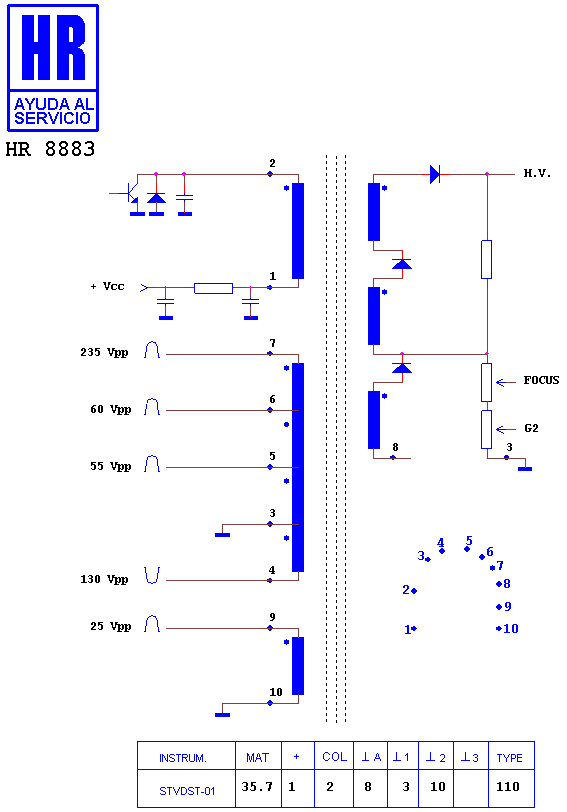

Schematic diagram for HR 8883
schematic (archived)

Manufacturer equivalents (8)

11030135410000 · 11030935351136 · 11040935351136 · 1362.5005 · 1362.5005A · 1362.5005D · 1362.5020 · 1362.5020A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8542 · HR 7860 · HR 8292 · HR 6723 · HR 7856 · HR 8892 · HR 80129 · HR 8232 · HR 7329 · HR 6365 · HR 8204 · HR 8576

Fitted to (3)

GOODMANS TWIST 32 · GOODMANS U 2 KA 83 NC 4 W 6 · TANDBERG KA 83 NT
