HR 8542

type ST · family 1VP · 24.3 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

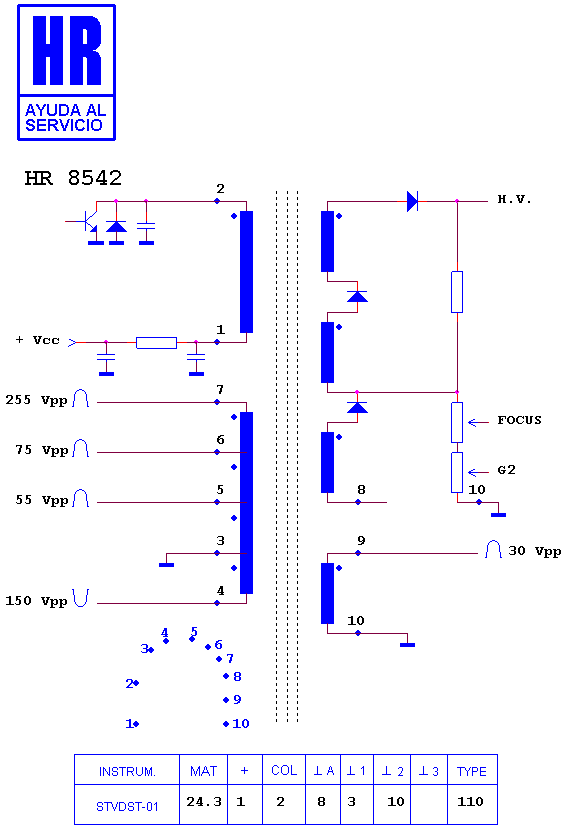

Schematic diagram for HR 8542
schematic

Manufacturer equivalents (15)

11030135091000 · 11030935091000 · 11040935091000 · 1152.7005 · 1352.5041 · 1352.5041 C · 1352.5041 D · 1352.5041A · 1352.5061 · 1352.5061A · 13821761 · 312813821761 · 40348-17 · AT2078/21761 · HR 8542

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8883 · HR 6068 · HR 8285 · HR 7289 · HR 6723 · HR 8576 · HR 8892 · HR 8292 · HR 6365 · HR 7251 · HR 80052 · HR 6219

Fitted to (1)

FORMENTI - ADMIRAL CHASIS F 19
