HR 7251

type ST · family 1AP1 · 27 kV maximum anode voltage · 110° deflection · 4 windings · 338 g

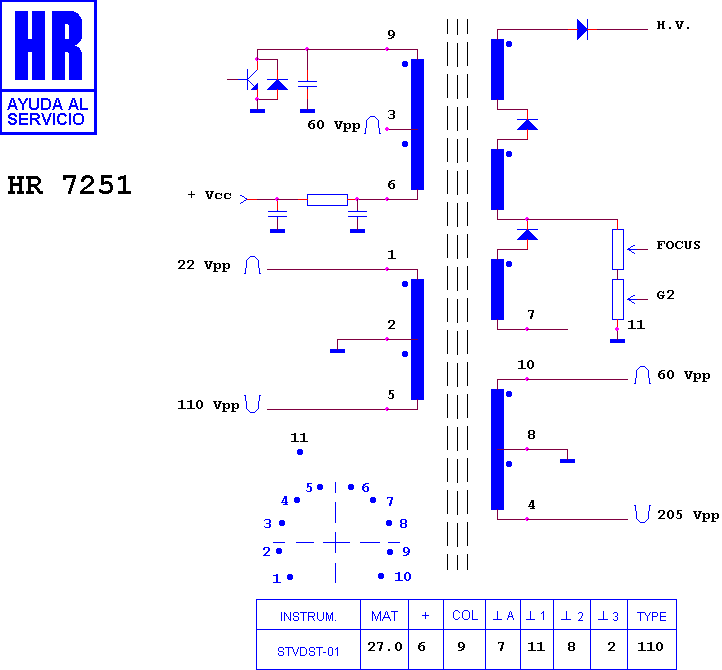

Schematic diagram for HR 7251
schematic

Manufacturer equivalents (4)

1192.0247 · 1362.3035 · 28030151 · FAT30370

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7289 · HR 7240 · HR 6680 · HR 7329 · HR 7394 · HR 7385 · HR 8883 · HR 6343 · HR 6219 · HR 6268 · HR 6226 · HR 8520

Fitted to (5)

GALAXIS CHASIS TESI 2 · GALAXIS CTV 7010 · GALAXIS CTV 7095 · ULTRAVOX CHASIS TESI 2 · ULTRAVOX TESI 2
