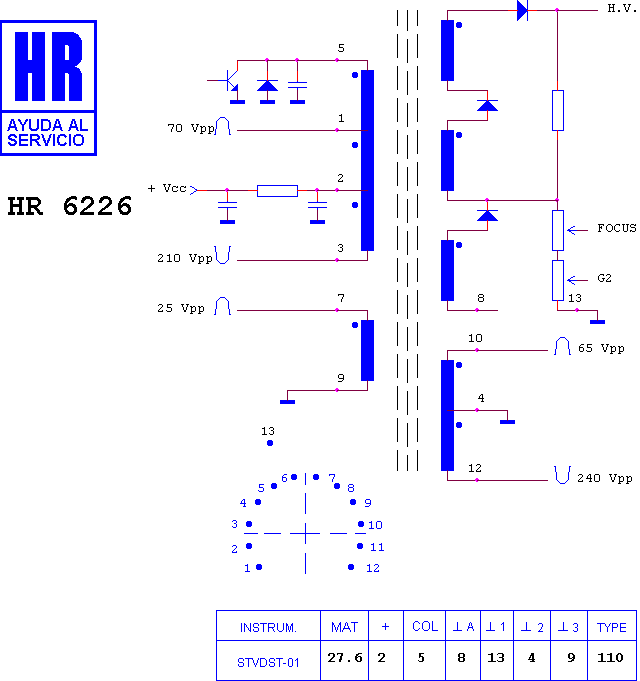

HR 6226

type ST · family 1BP1 · 27.6 kV maximum anode voltage · 110° deflection · 4 windings · 386 g

Manufacturer equivalents (4)

1182.0247 · 28027150 · FAT 30480 · KN 30480

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6625 · HR 6209 · HR 46175 · HR 8234 · HR 80022 · HR 7289 · HR 7251 · HR 6062 · HR 6478 · HR 7109 · HR 6219 · HR 6012

Fitted to (5)

SAMBER'S / NUOVA SAMBER'S CHASIS BT 89 · SAMBER'S / NUOVA SAMBER'S CT 28 EV · SAMBER'S / NUOVA SAMBER'S CT 34 EV · SAMBER'S / NUOVA SAMBER'S CT 388 · SAMBER'S / NUOVA SAMBER'S VIDEO INFO

Search this part in the full database
