HR 6625

type ST · family 1BP1 · 27 kV maximum anode voltage · 110° deflection · 4 windings · 380 g

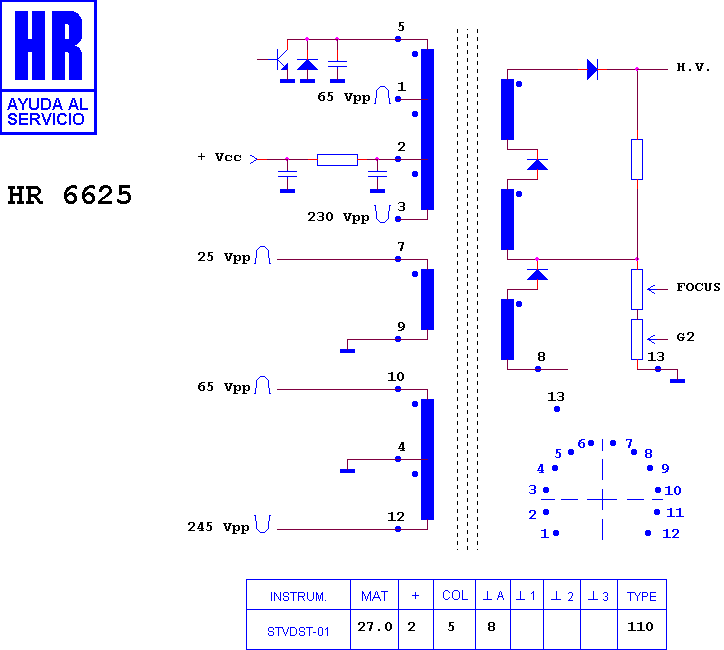

Schematic diagram for HR 6625
schematic

Manufacturer equivalents (6)

1182.0450 · 1182.0457 · 1182.04570 · 1182.0457A · 28070590 · HR 6625

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6226 · HR 6209 · HR 6012 · HR 6219 · HR 7160 · HR 80051 · HR 6365 · HR 7218 · HR 7377 · HR 80022 · HR 6059
