HR 80022

24.9 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

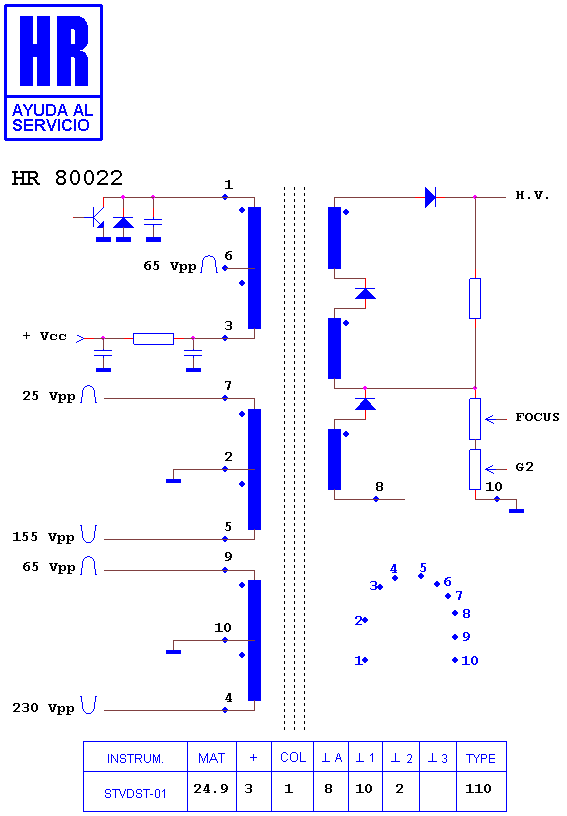

Schematic diagram for HR 80022
schematic (archived)

Manufacturer equivalents (4)

1352.5018 · 1352.5018A · 1352.5018B · HR 80022

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80085 · HR 6219 · HR 7289 · HR 7251 · HR 6226 · HR 7329 · HR 7240 · HR 6268 · HR 6365 · HR 8234 · HR 6209 · HR 7856

Fitted to (2)

BEKO - BEKOTEKNIK CHASIS 22.1 110 · BEKO - BEKOTEKNIK CHASIS 22.3 110

Search this part in the full database
