HR 8234

type ST · family 1VS · 33.9 kV maximum anode voltage · 110° deflection · 4 windings · 352 g

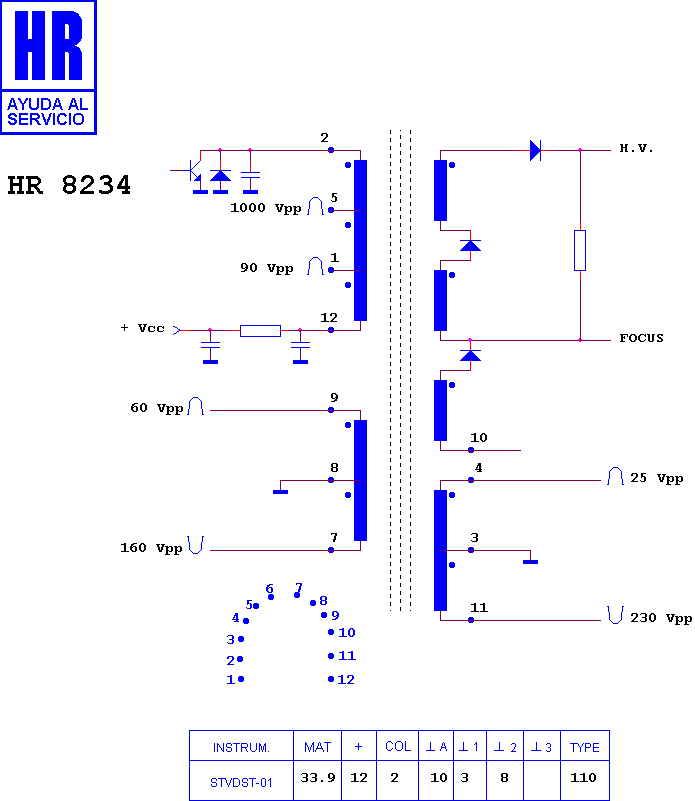

Schematic diagram for HR 8234
schematic

Manufacturer equivalents (3)

1362.6001 · 1372.6024 · DS 35

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6555 · HR 8892 · HR 7856 · HR 80243 · HR 80085 · HR 80081 · HR 8193 · HR 8596 · HR 6702 · HR 80130 · HR 8879 · HR 6268

Fitted to (1)

MIVAR 29 S 1 STEREO PIP
