HR 8173

type ST · family 1AP1 · 20.4 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

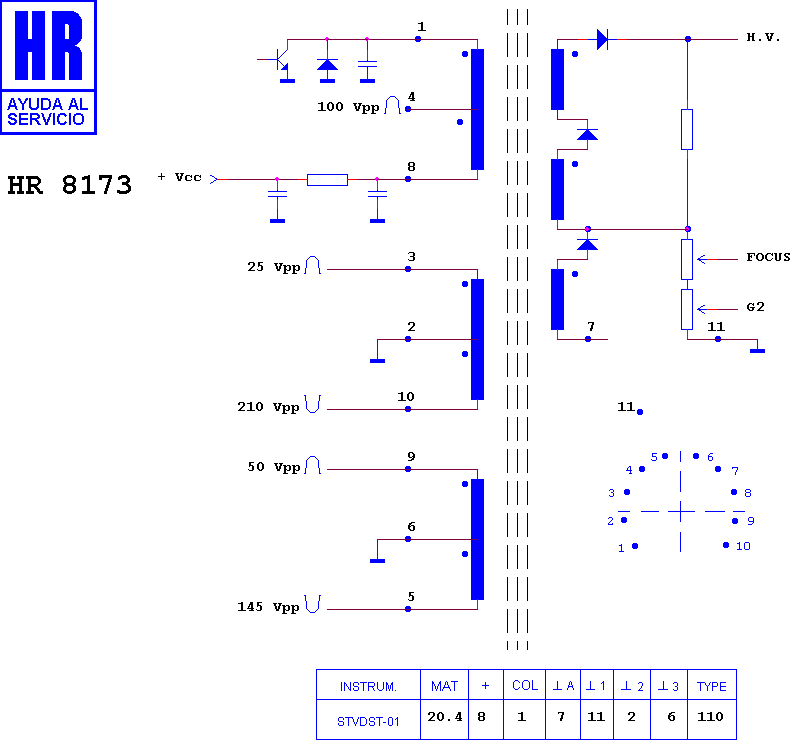

Schematic diagram for HR 8173
schematic

Manufacturer equivalents (8)

1192.1417 · 1352.3025 · 1352.3025A · 1352.3026 · DS32 · DS32-1 · FAT30821 · HR 8173

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8879 · HR 80243 · HR 6115 · HR 8016 · HR 8766 · HR 6171 · HR 80130 · HR 6555 · HR 6517 · HR 80081 · HR 8892 · HR 8438

Fitted to (6)

MIVAR 25 M 5 · MIVAR 25 M 5 STEREO PIP · MIVAR 25 S 4 STEREO PIP · MIVAR 28 M 5 · MIVAR 28 M 5 STEREO PIP · MIVAR 28 S 4 STEREO PIP
