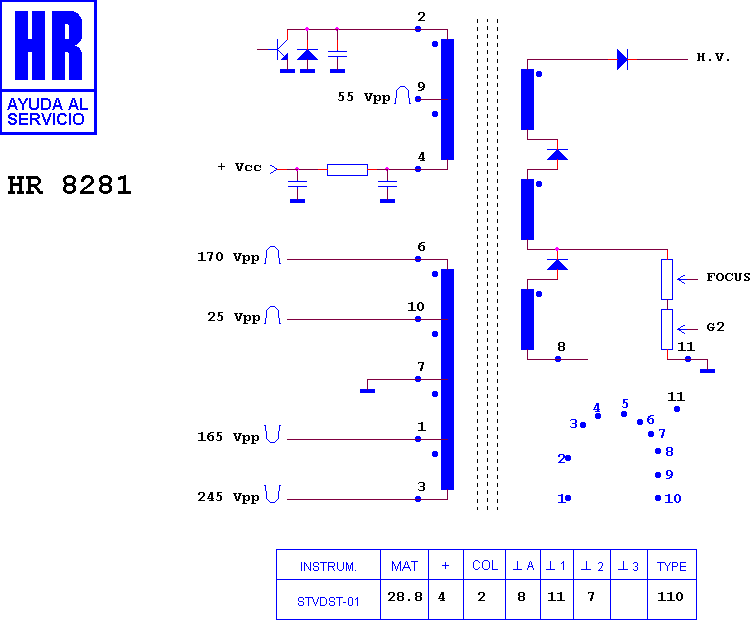

HR 8281

type ST · family 1XP1 · 28.8 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

Manufacturer equivalents (2)

F 1826 CE · RTRNF1826CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6578 · HR 8596 · HR 7823 · HR 8808 · HR 80031 · HR 6594 · HR 80243 · HR 7392 · HR 6142 · HR 6408 · HR 8149 · HR 8931

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (3)

SHARP C 3996 · SHARP C 3996 SN · SHARP C 3996 SV
