HR 7823

type ST · family 1YP · 31.5 kV maximum anode voltage · 110° deflection · 3 windings · 373 g

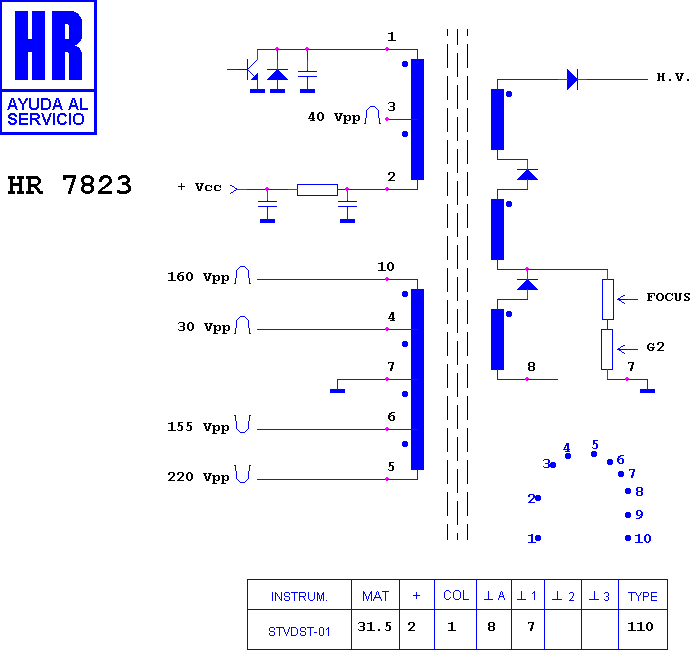

Schematic diagram for HR 7823
schematic

Manufacturer equivalents (9)

5908-05019A-AA · CF 0165 · CF 0519 · CF 165 · FAT30127 · KN30127 · LCE CF 0165 · LCE CF 0519 · ME/6362-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8398 · HR 8766 · HR 7831 · HR 7706 · HR 46276 · HR 6382 · HR 6142 · HR 6061 · HR 7927 · HR 8779 · HR 6303 · HR 6126

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SEG CTV 2971 · TEC 7082 SF · TELETECH CTV 2971

Search this part in the full database
