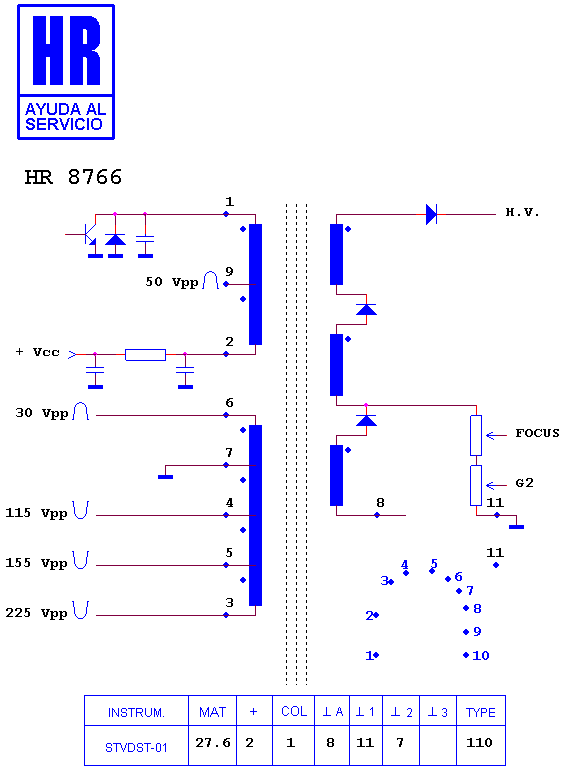

HR 8766

27.6 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

Manufacturer equivalents (3)

4992-078 · FCK14B045 · FCK14B045A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80081 · HR 8438 · HR 80116 · HR 6585 · HR 80130 · HR 8346 · HR 8808 · HR 8814 · HR 8892 · HR 7823 · HR 7497 · HR 80108
