HR 8149

33 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

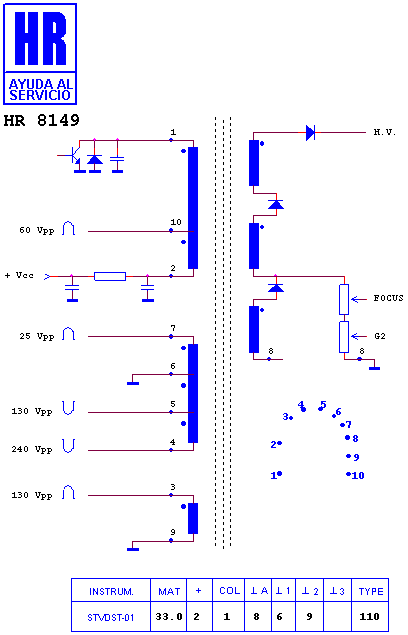

Schematic diagram for HR 8149
schematic (archived)

Manufacturer equivalents (10)

5100-051025-00 · 5100-051405-00 · 5101-051025-00 · 5101-051405-00 · 5101-051409-00 · 5101-051409-01 · BSC26-1307 · JF0101-0109 · JF0101-0170 · JF0501-2111

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6585 · HR 80081 · HR 8520 · HR 8808 · HR 80126 · HR 80057 · HR 8596 · HR 8801 · HR 80122 · HR 7859 · HR 8833 · HR 8892

Fitted to (12)

CLATRONIC TV 2950 · ERN 2520 · ERN CHASIS 5 N 11 · KONKA 8298 · PHILIPS 29 PT 295 B · PHILIPS 29 PT 925 B · PLI 63 NX-PLAT · SKYTRONIC TV 2950 · SKYWORTH 25' 140 V 5 N 10 · SKYWORTH 25' 140 V 5 N 20 · SKYWORTH 25' 140 V 5 T 03 · SKYWORTH CHASIS 5 N 10 25
