HR 6585

type ST · family 1BP1 · 33.8 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

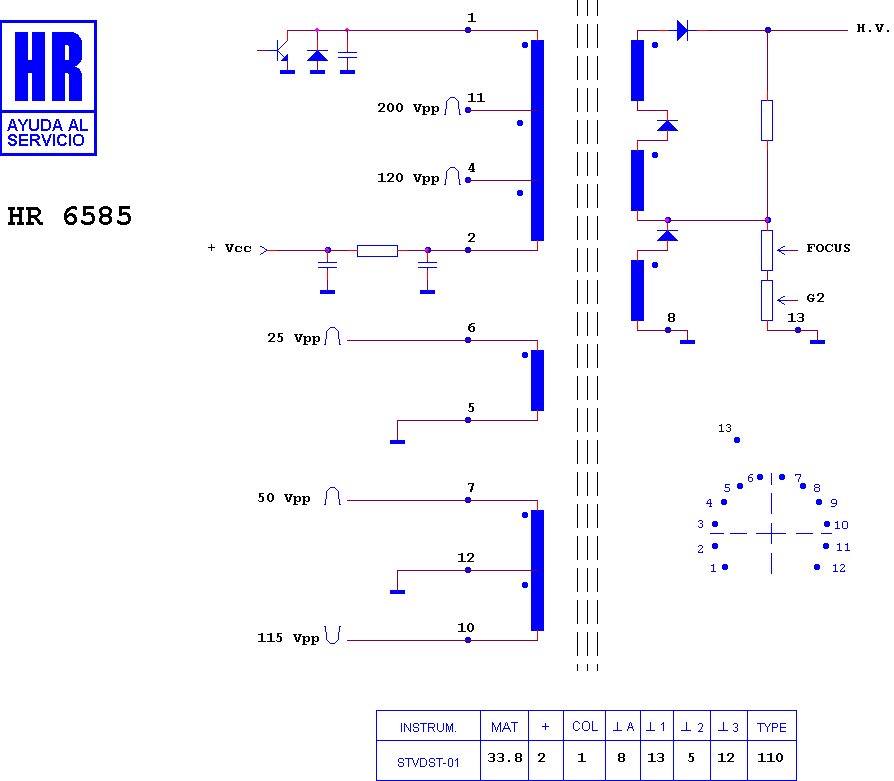

Schematic diagram for HR 6585
schematic

Manufacturer equivalents (8)

003321113 · 63.2097.000 · FAT30403 · H 32-16 · H32-16A · KN30403 · RO 410 · TR 410

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8596 · HR 80081 · HR 80126 · HR 8853 · HR 8808 · HR 8892 · HR 8520 · HR 80031 · HR 80057 · HR 8801 · HR 8833 · HR 8149

Fitted to (1)

NECKERMANN 765/465
