HR 8707

38.4 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

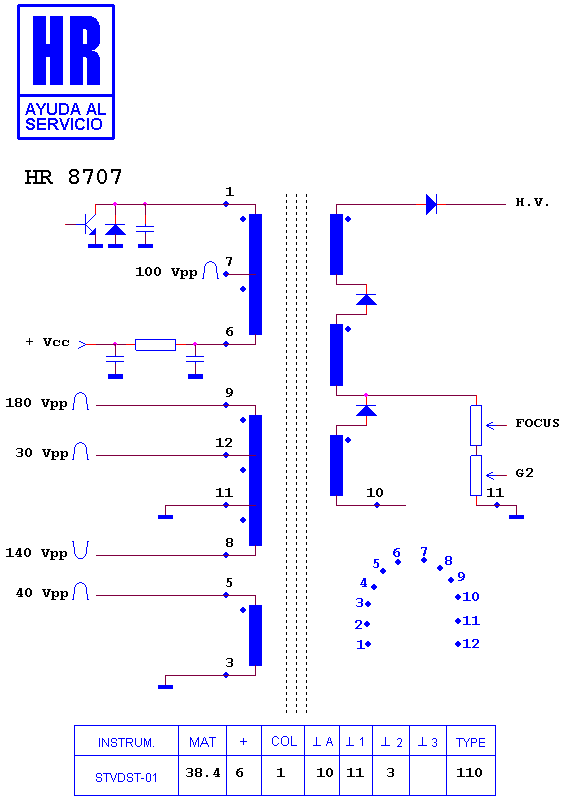

Schematic diagram for HR 8707
schematic (archived)

Manufacturer equivalents (8)

1302.0009 · 1302.0009A · 1302.0009B · 1302.0009D · 242253102231 · 482214010629 · 53102231 · HR 8707

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80130 · HR 46276 · HR 7706 · HR 80243 · HR 6115 · HR 6142 · HR 8086 · HR 8766 · HR 6098 · HR 8778 · HR 7818 · HR 6585

Fitted to (4)

PHILIPS 29 PT 880 A · PHILIPS 29 PT 888 A · PHILIPS 29 PT 8888 · PHILIPS CHASIS MID 1
