HR 7282

type ST · family 1AP1 · 17.8 kV maximum anode voltage · 90° deflection · 4 windings · 360 g

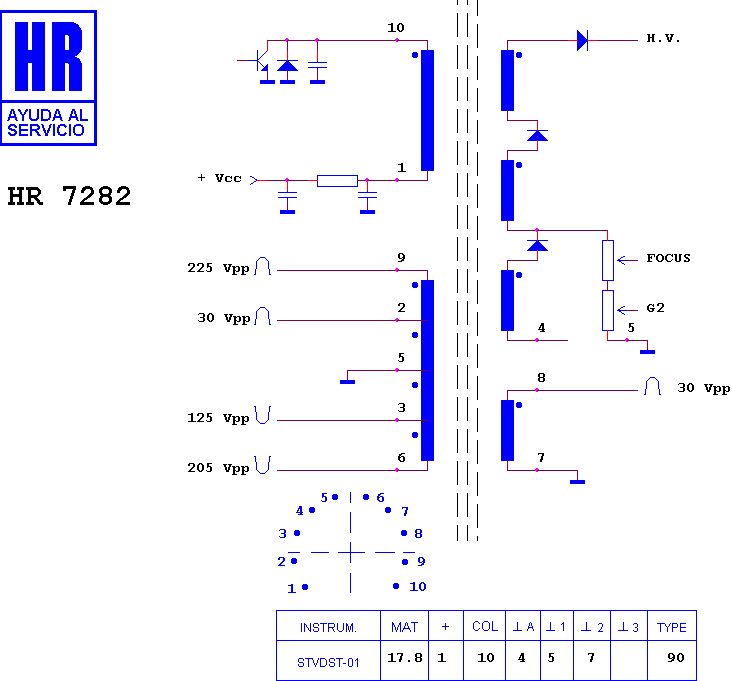

Schematic diagram for HR 7282
schematic

Manufacturer equivalents (7)

0036 4087 0001 · 00364087-0003 · 364087-0001 · 364087-0003 · 364087-1 · 364087-3 · 4835 140 67098

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7633 · HR 7081 · HR 6397 · HR 7837 · HR 7028 · HR 7333 · HR 8303 · HR 7706 · HR 7472 · HR 7970 · HR 8928 · HR 8573

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

PHILIPS MR 1431
