HR 6590

type ST · family 1BP1 · 17.2 kV maximum anode voltage · 90° deflection · 5 windings · 396 g

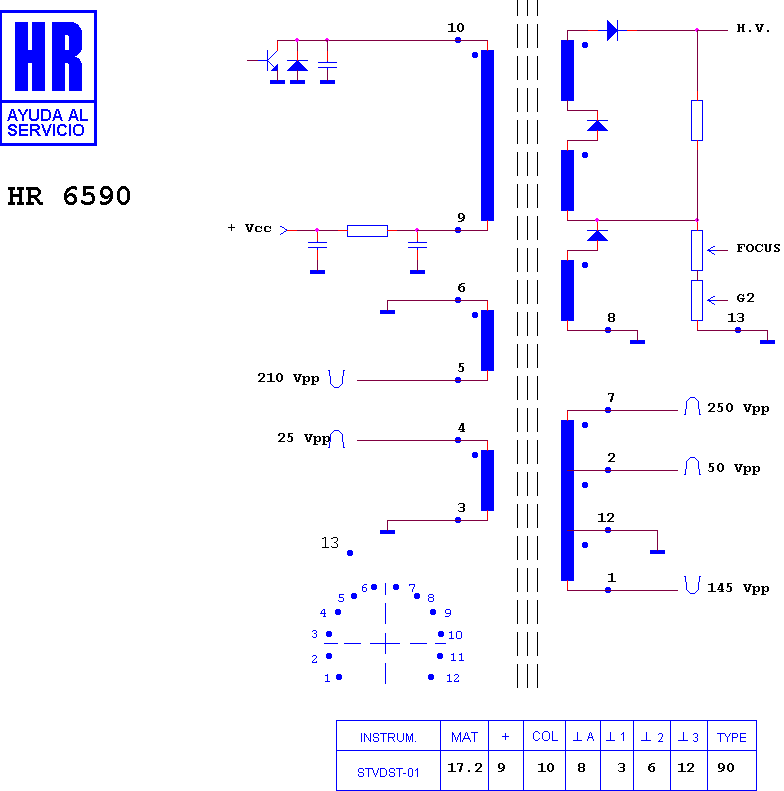

Schematic diagram for HR 6590
schematic

Manufacturer equivalents (14)

003321107 · 1182.1047 · 1182.1147 · 1182.11470 · FAT 30440 · H 32-02 · HR 6590 · KN 30440 · M 32-02 · M 32-02 C · PET 32-C6 · PET 32-C7 · RO 402 · TR 402

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7605 · HR 6142 · HR 7227 · HR 6039 · HR 8573 · HR 7851 · HR 7135 · HR 7702 · HR 7019 · HR 7282 · HR 7455 · HR 6211

Fitted to (15)

METZ CHASIS 696 G 9-7998 · UNIMOR CHASIS SIESTA 3 · UNIMOR CHASIS UBX 2031 · UNIMOR M 646 TSO · UNIMOR M 651 TSO · UNIMOR M 652 TSO · UNIMOR M 846 TSO · UNIMOR M 851 TSO · UNIMOR M 852 TSO · UNIMOR M 900 TSO · UNIMOR M 901 TSO SAT · UNIMOR STRON 2 · UNIMOR STRONA 2 · UNIMOR VK 203 · UNIMOR VKK 203
