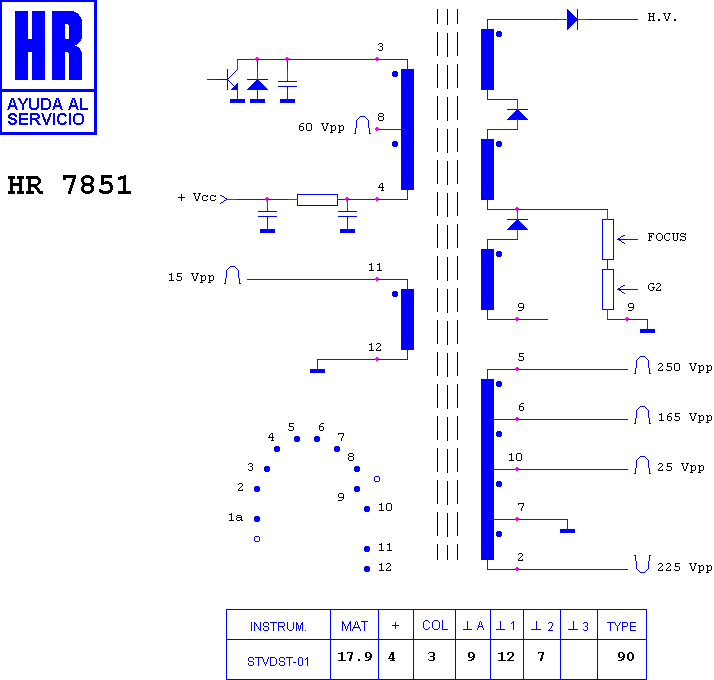

HR 7851
Manufacturer equivalents (8)
002 651 0481 · 26510481 · F 1627 CE · F 1628 CE · FAT 3867 · ME/6157-00 · RTRNF1627CEZZ · RTRNF1628CEZZ
Possible substitutes
Parts of a similar design. A shortlist to check, not a recommendation.
HR 7807 · HR 7846 · HR 6039 · HR 8573 · HR 6211 · HR 8007 · HR 7605 · HR 7081 · HR 7837 · HR 7273 · HR 7633 · HR 7970
Notes
COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
Fitted to (13)
SHARP C 3707 SD · SHARP CHASIS 5 P SR 1 · SHARP CV 3707 · SHARP CV 3707 S · SHARP CV 3707 SD · SHARP CV 3707 SS · SHARP CV 3707 SW · SHARP CV 5407 · SHARP CV 5407 SD · SHARP CV 5407 SD 2 · SHARP CV 5407 SS · SHARP CV 5407 SS 2 · SHARP CV 5407 SW
