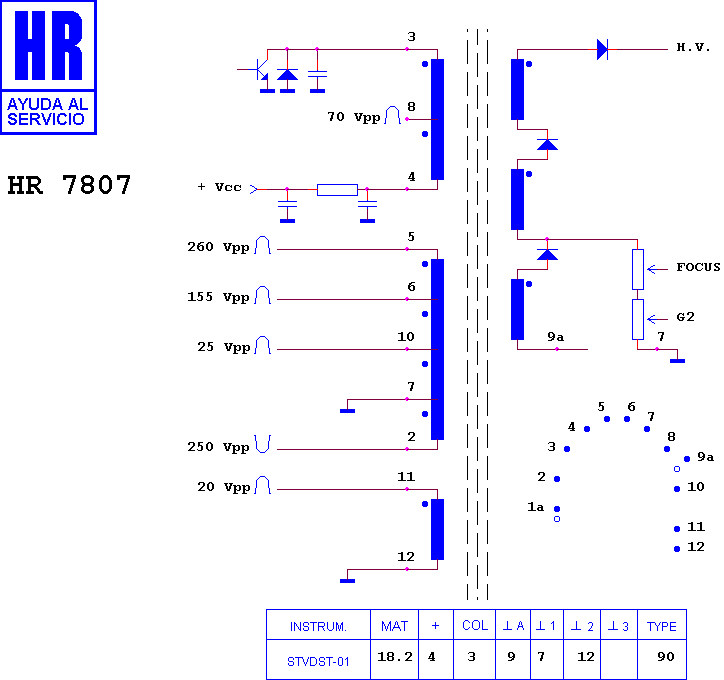

HR 7807

type ST · family 1CAP · 18.2 kV maximum anode voltage · 90° deflection · 4 windings · 270 g

Manufacturer equivalents (6)

002 651 0501 · 26510501 · F 1643 CE · FAT 3868 · ME/6158-00 · RTRNF1643CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7846 · HR 7851 · HR 80076 · HR 7843 · HR 7081 · HR 6089 · HR 7722 · HR 7837 · HR 8007 · HR 7105 · HR 7633 · HR 7772

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

SHARP C 4207 ND · SHARP CHASIS 5 P SR 1 · SHARP CV 4207 · SHARP CV 4207 S · SHARP CV 4207 SD · SHARP CV 4207 SS · SHARP CV 4207 SW
