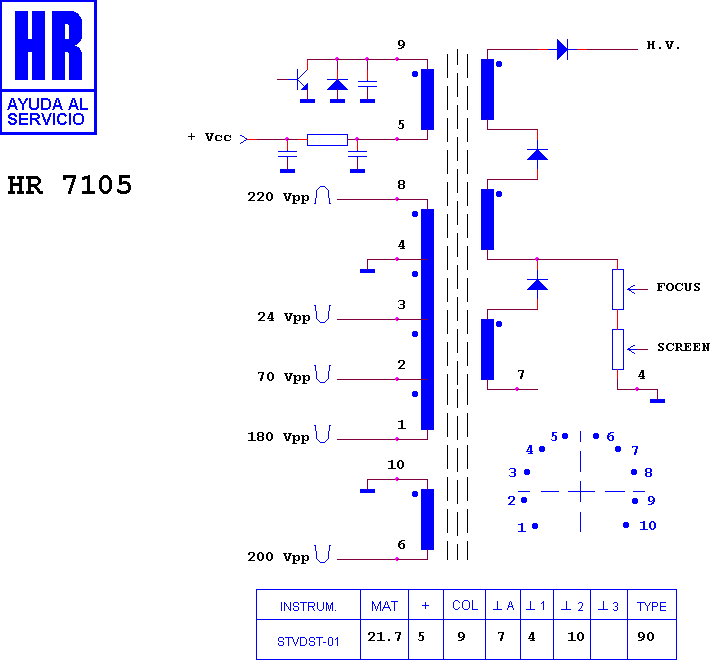

HR 7105

type ST · family 1AP1 · 21.7 kV maximum anode voltage · 90° deflection · 4 windings · 347 g

Manufacturer equivalents (7)

003031009 · 2434451 · 534 TX 0245 · AFS 266 · KN 35089 N · RO 250 · TR 250

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7032 · HR 7111 · HR 6223 · HR 7080 · HR 6221 · HR 6222 · HR 7996 · HR 8958 · HR 7469 · HR 7458 · HR 8654 · HR 7898

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (15)

BRANDT 14 414 T · BRANDT CHASIS ICC 4 · FERGUSON-THORN-EMI TX 90 · HITACHI P 37 U 2 · NORDMENDE CHASIS F 14 · SABA P 37 U 42 · TELEAVIA CHASIS ICC 4 A · TELEAVIA TA 1422 · TELEFUNKEN 14 · TELEFUNKEN 225 P · TELEFUNKEN CHASIS 417 · TELEFUNKEN CHASIS ICC 4 · TELEFUNKEN PALCOLOR A · TELEFUNKEN PALCOLOR MR · THOMSON TS 3619
