HR 8654

20.6 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

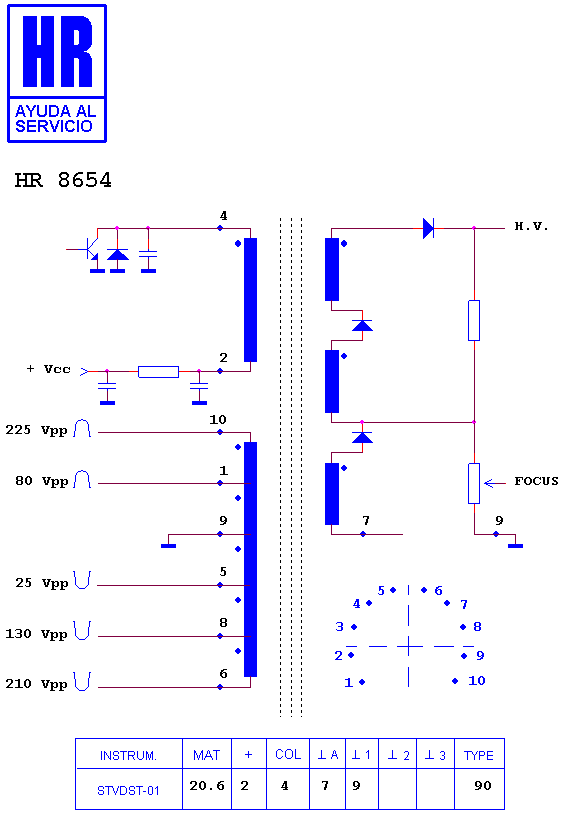

Schematic diagram for HR 8654
schematic (archived)

Manufacturer equivalents (3)

276-023088 · 276-23088 · M12-62

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8573 · HR 7273 · HR 7655 · HR 7770 · HR 7455 · HR 7264 · HR 8092 · HR 8207 · HR 7846 · HR 7633 · HR 80076 · HR 8958

Fitted to (2)

LOEWE / LOEWE-OPTA 52 415 · LOEWE / LOEWE-OPTA CONCEPT 5500 PT
