HR 7080

type SM · family 1AP2 · L° deflection · 3 windings · 316 g

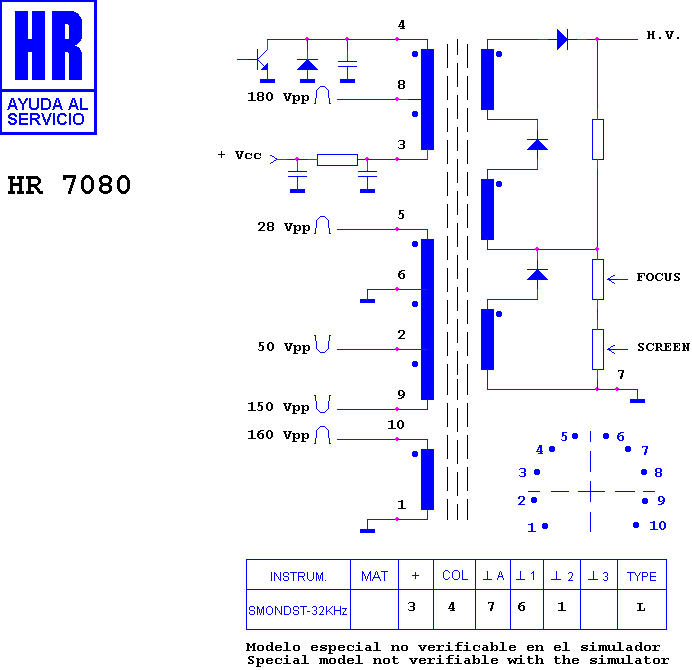

Schematic diagram for HR 7080
schematic

Manufacturer equivalents (10)

1105.0380 · 1105.0387 · 1105.0597 · 946348 · 946548 · 946548 1 · 946548 A · 976548A · ME/6007-00 · TDS 138

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8389

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

EMERSON TOPSI 10 · ULTRAVOX TOPSI 10"
