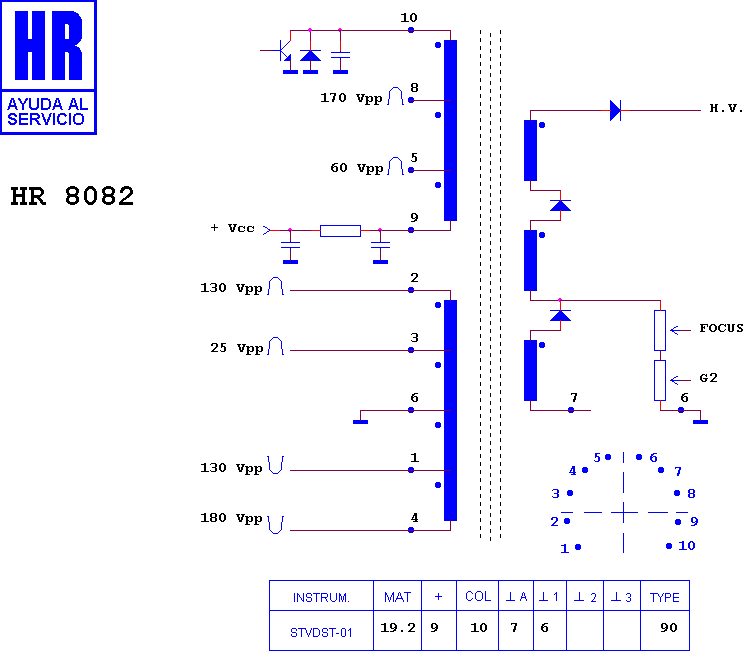

HR 8082

type ST · family 1NP1 · 19.2 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

FCC 1415 OL

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7797 · HR 7645 · HR 7441 · HR 8755 · HR 7970 · HR 7391 · HR 7456 · HR 80127 · HR 7960 · HR 8207 · HR 7469 · HR 7898

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
