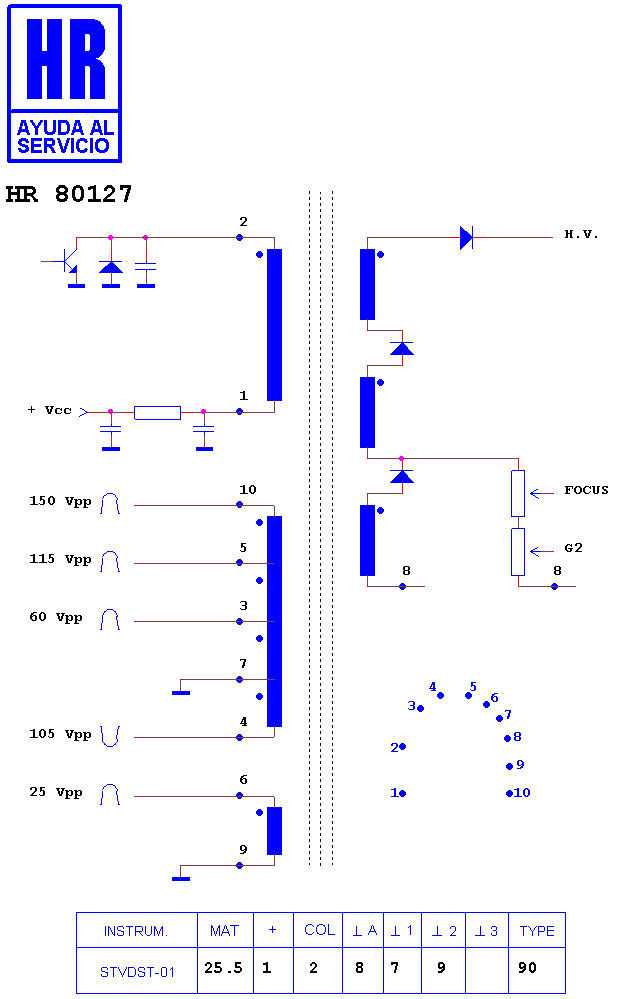

HR 80127

type ST · family 1XP1 · 25.5 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

Manufacturer equivalents (4)

094-01105/0.5 · 1412.5009 · 94-01105/0.5 · HFT 3676

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (9)

SANYO CE 14 A 3 · SANYO CE 14 AT 3 · SANYO CE 14 AT 3 C · SANYO CE 14 AT 3 E · SANYO CHASIS 2117 · SANYO CHASIS EC 7 C · SANYO CHASIS MB 6 · SONITRON S 2414 S TXT · SONITRON S 2514 STXT
