HR 7441

type ST · family 1XP1 · 21.3 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

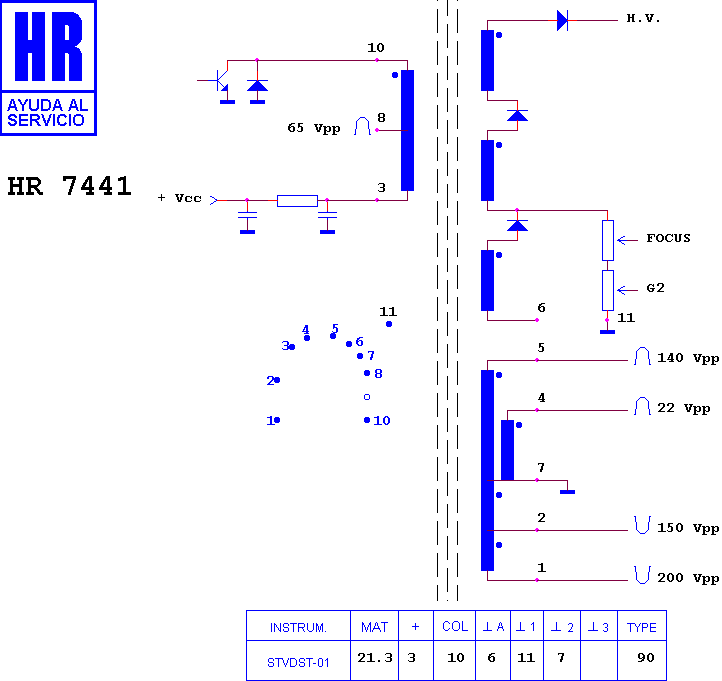

Schematic diagram for HR 7441
schematic

Manufacturer equivalents (6)

5908-05014A-AA · CF 134 · FAT30134 · KN30134 · LCECF134 · ME/6475-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7444 · HR 8205 · HR 7734 · HR 7918 · HR 8600 · HR 7996 · HR 6221 · HR 6222 · HR 8404 · HR 7058 · HR 6009 · HR 7455

Fitted to (23)

ALBA CTV 10 · ALBA CTV 10 RC · COLORADO 931852028 · COLORADO COLORADO · COLORADO K 3910/K 19 A · CONDOR CTV 1401 · ELTA TV 2028 · FIDELITY CTV 2022 GR · FRONTEC CTV 2088 SG · FRONTEC CTV 2088 SGT · FRONTEC CTV 2088 T · G.B.C. MONZA 1032 · GELOSO G 10032 · GOLDHAND CT 2051 PS · HINARI HIT 10 R · KAISUI GW 3910 · MERRIT BS 3733 · SEG CTV 5622 · STARLUX CS 3791 · SUPERTECH CTV 3632 S · TELETECH CTV 5622 · TENSAI TCT 100 BG · YOKO YCT 10
