HR 7996

24.1 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

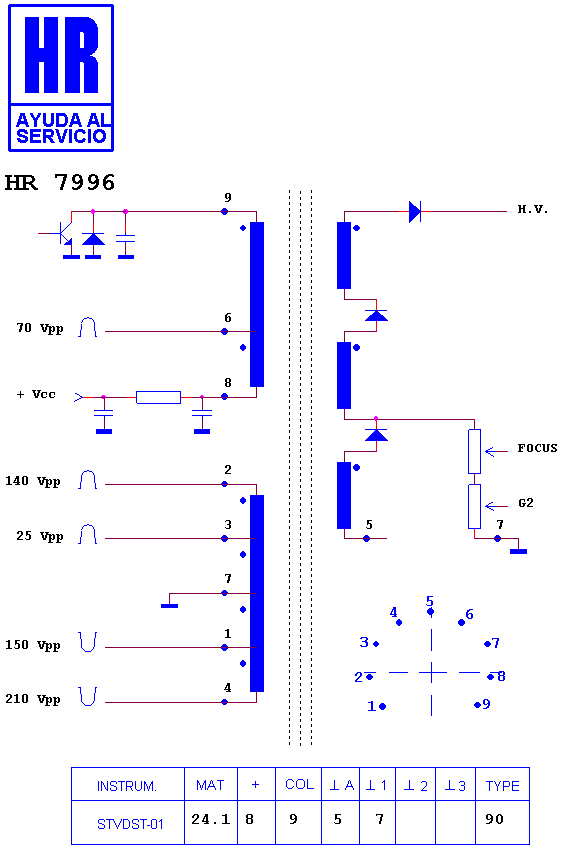

Schematic diagram for HR 7996
schematic (archived)

Manufacturer equivalents (5)

355200900 · FAT30221 · NF7401 · NF7401C · TVC/76

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7719 · HR 8088 · HR 8087 · HR 7983 · HR 7978 · HR 8472 · HR 7711 · HR 5704 · HR 6555 · HR 7772 · HR 8660 · HR 7817

Fitted to (6)

CCE HPS 15 · CCE HPS 20 · CCE HPS 2015 · CCE HPS 2030 · CCE HPS 2030 R · CCE HPS 30
