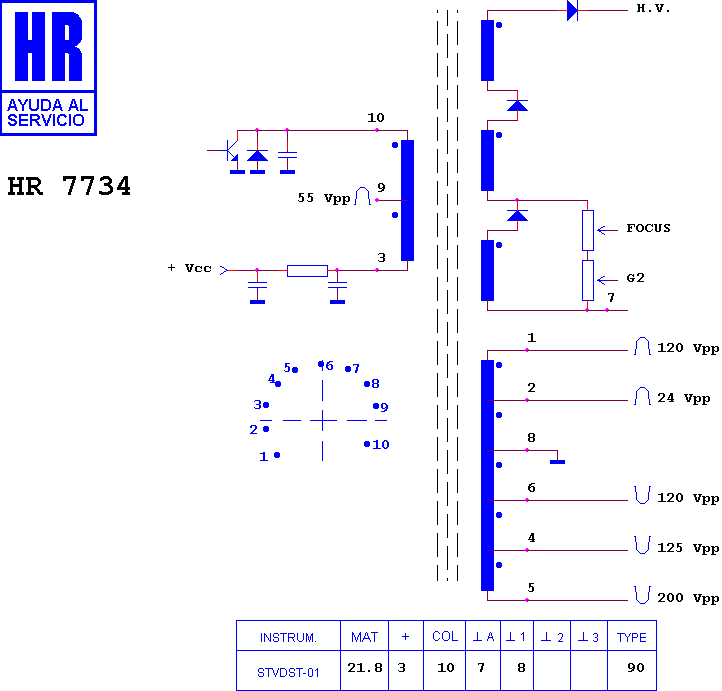

HR 7734

type ST · family 1XP1 · 21.8 kV maximum anode voltage · 90° deflection · 3 windings · 276 g

Manufacturer equivalents (1)

154 122 J

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7444 · HR 8600 · HR 8358 · HR 7441 · HR 8087 · HR 7657 · HR 7721 · HR 7058 · HR 7584 · HR 7596 · HR 7518 · HR 7719

Search this part in the full database
