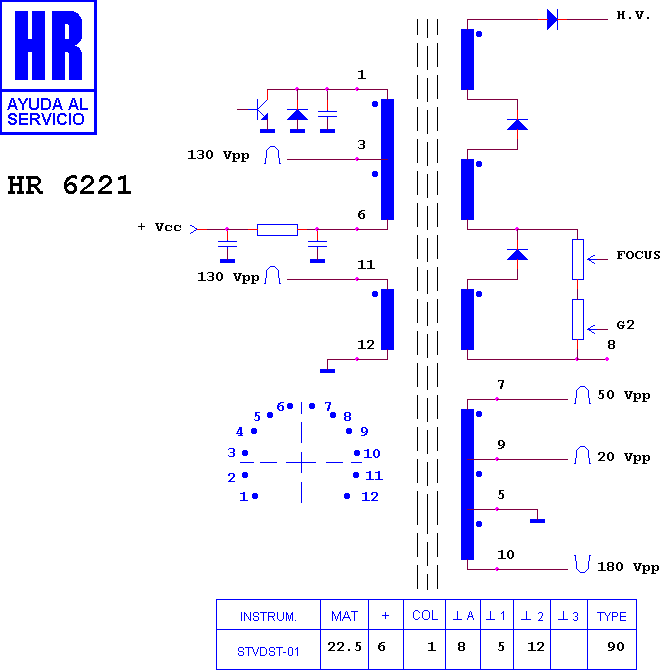

HR 6221

type ST · family 1BP1 · 22.5 kV maximum anode voltage · 90° deflection · 4 windings · 366 g

Manufacturer equivalents (1)

FBT 520

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6222 · HR 7905 · HR 7721 · HR 8263 · HR 7675 · HR 7734 · HR 7830 · HR 8303 · HR 7919 · HR 7105 · HR 7719 · HR 8087

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
