HR 8303

type ST · family 1XP1 · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

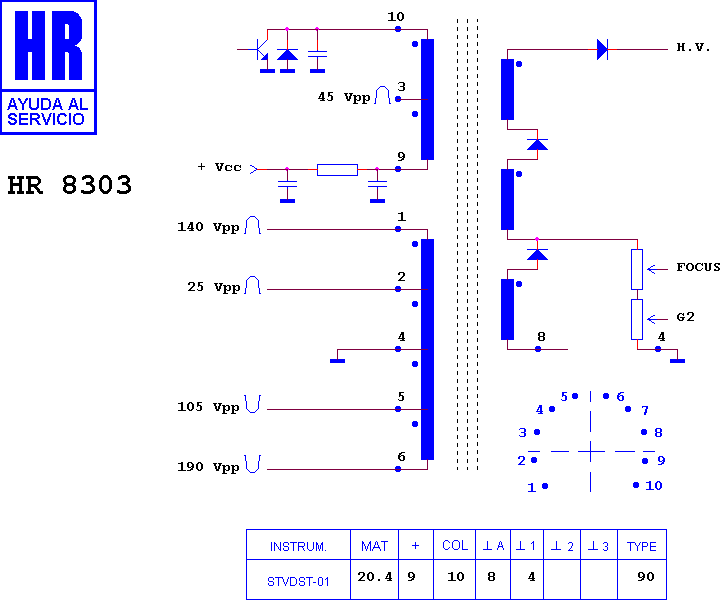

Schematic diagram for HR 8303
schematic

Manufacturer equivalents (6)

DNF-FA 2017 · DNF-FC1412 · FA 2017 · FC1412 · KT 7014 · KT7015

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8207 · HR 8085 · HR 7670 · HR 7471 · HR 7898 · HR 8928 · HR 6407 · HR 6408 · HR 7970 · HR 8573 · HR 7197 · HR 7073

Fitted to (2)

CITIZEN JCTV 3088 · FIRST LINE T 20 AW
