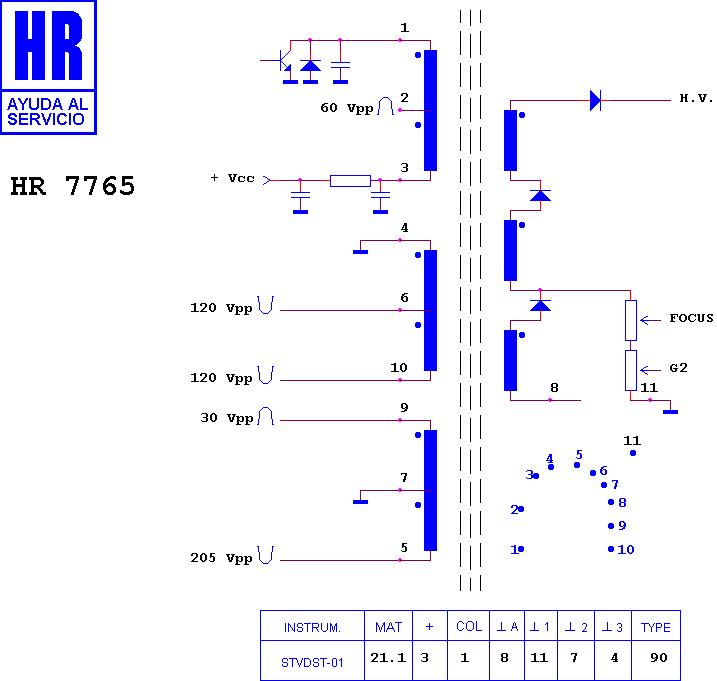

HR 7765

type ST · family 1XP1 · 21.1 kV maximum anode voltage · 90° deflection · 4 windings · 288 g

Manufacturer equivalents (2)

95-4376 · 95-4376-02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7734 · HR 7645 · HR 7830 · HR 8275 · HR 7793 · HR 7585 · HR 7567 · HR 8922 · HR 7584 · HR 7596 · HR 6578 · HR 8747

Fitted to (2)

ZENITH SLS 2049 S · ZENITH SS 19XX

Search this part in the full database
