HR 7584

type ST · family 1NP1 · 22.1 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

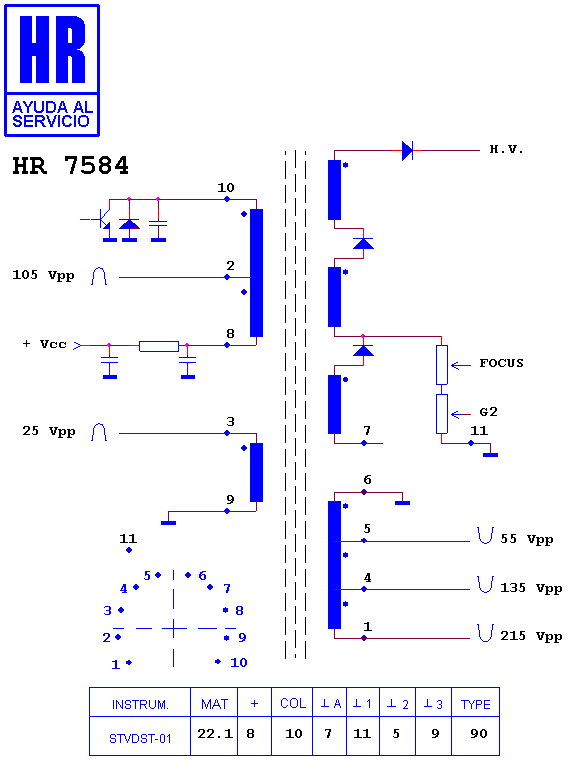

Schematic diagram for HR 7584
schematic

Manufacturer equivalents (3)

1142.1115 · 1142.1115 A · DS 17

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7058 · HR 7596 · HR 7168 · HR 7284 · HR 7721 · HR 7518 · HR 6407 · HR 6408 · HR 7657 · HR 8263 · HR 80293 · HR 8087

Fitted to (4)

MIVAR 14 C 1 V · MIVAR 14 C 2 V · MIVAR 14 M 3 · MIVAR 16 M 1
